SMALL
SIGNAL SCHOTTKY DIODE
|
FEATURES
AND BENEFITS
* Surface mount device
* Extremely fast switching
* Negligible switching losses
* Low forward voltage drop
* Very small conduction losses
DESCRIPTION
Schottky barrier diode encapsulated in a SOT-23 small SMD
package
Single and double diodes with different pining are available
|
 |
MAXIMUM
RATINGS
| CHARACTERISTIC
|
SYMBOL |
BAT54
|
UNIT |
Peak
Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage |
VRRM
VRWM
VR
|
30
|
V
|
| RMS
Reverse Voltage |
VR(RMS)
|
21
|
V
|
| Average
Rectifier Forward Current |
IF(AV)
|
200
|
mA
|
Peak
Repetitive Forward Current
(Rated VR,Square Wave,20 KHz) |
IFRM
|
400
|
mA
|
| Operating
and Storage Junction Temperature Range |
Tj
, Tstg
|
-65
to +125
|
oC
|
THERMAL RESISTANCE
|
CHARACTERISTIC
|
SYMBOL
|
RATED
|
UNIT
|
| Junction
to Ambient ( * ) |
Rth(j-a)
|
400
|
oC/W
|
(*) Mounted
on ceramic substrate: 7 x 5 x 0.5 mm
STATIC
ELECTRICAL CHARATERISTICS (per diode for double type)
|
CHARACTERISTIC
|
SYMBOL
|
MIN
|
TYP.
|
MAX.
|
UNIT
|
Forward Voltage
(TC = 25 oC)
( IF = 0.1 mA )
( IF = 1.0 mA )
( IF = 10 mA )
( IF = 30 mA )
( IF = 100 mA ) |
VF
|
|
|
240
320
400
500
600
|
mV
|
Reverse
Breakdown Voltage
( IR = 100 uA ) |
VR
|
30
|
|
|
V
|
Diode
Capacitance
( VR =1.0 V , f=1.0 MHz) |
Cd
|
|
|
15
|
pF
|
Reverse
Current
( VR = 25 V ) |
IR
|
|
|
2.0
|
uA
|
Reverse
Recovery Time
( IF = 10 mA, IR = 10 mA ,Irr
= 1.0 mA RL = 100 ohm ) |
Trr
|
|
|
5.0
|
ns
|

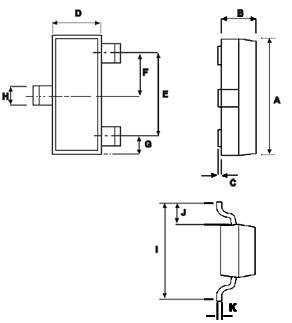

PACKAGE MECHANICAL
DATA
SOT-23
 |
| DIM |
MILLMETERS |
|
MIN |
MAX |
| A |
2.67 |
3.05 |
| B |
0.64 |
1.30 |
| C |
--- |
0.10 |
| D |
1.20 |
1.60 |
| E |
1.70 |
2.10 |
| F |
0.89 |
1.05 |
| G |
0.35 |
0.65 |
| H |
0.30 |
0.54 |
| I |
2.10 |
2.75 |
| J |
0.55 |
0.64 |
| K |
0.085 |
0.18 |
|
| PART
NO. |
BAT54 |
BAT54C |
BAT54A |
BAT54S |
| MARKING |
AC |
ACC |
ACA |
ACS |
|
