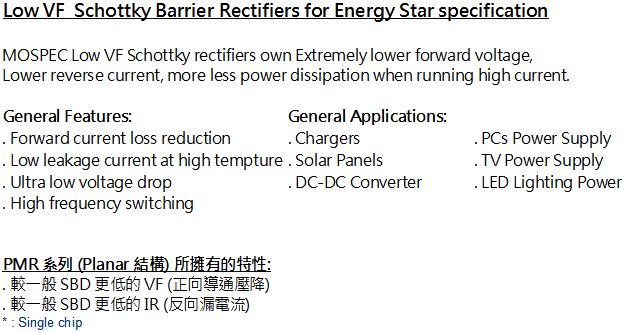

LOW VF Planar MOS SCHOTTKY PART NO. I0 (A) VRM (V) IFSM (A) IR[MAX] (uA) VF@Io (V) Tj max 0C PACKAGE Download SKM24 2 45 30 50 0.51 150 SMA SKM26 2 60 30 100 0.54 150 SMA SKM34 3 45 30 50 0.53 150 SMA SKM36 3 60 30 100 0.60 150 SMA SKM54 5 45 30 100 0.51 150 SMA SKM54F 5 45 30 100 0.51 150 SMAF SKM56 5 60 30 100 0.59 150 SMA SL54F 5 40 120 0.5 0.48 150 SMAF SL545F 5 45 120 0.5 0.48 150 SMAF SL55F 5 50 120 0.5 0.48 150 SMAF SL56F 5 60 120 0.5 0.48 150 SMAF SL58F 5 80 120 0.2 0.7 150 SMAF SL510F 5 100 120 0.2 0.7 150 SMAF SRM24 2 45 50 50 0.51 150 SMB SRM26 2 60 50 100 0.54 150 SMB SRM34 3 45 50 50 0.53 150 SMB SRM36 3 60 50 100 0.60 150 SMB SRM54 5 45 50 100 0.51 150 SMB SRM56 5 60 50 100 0.59 150 SMB SRM204 2 45 50 100 0.51 150 DO-15 SRM206 2 60 50 100 0.54 150 DO-15 SRM304 3 45 75 100 0.53 150 DO-201 SRM306 3 60 75 100 0.60 150 DO-201 SRM504 5 45 75 100 0.51 150 DO-201 SRM506 5 60 75 100 0.59 150 DO-201 S05L45 5 45 75 100 0.50 150 TO-277 S05L60 5 60 75 100 0.55 150 TO-277 S10L45 10 45 75 100 0.52 150 TO-277 S10L60 10 60 75 100 0.60 150 TO-277 S15L45 15 45 75 100 0.53 150 TO-277 S15L60 15 60 75 100 0.60 150 TO-277 S20L60 20 60 75 100 0.61 150 TO-277 S10M45C 10 45 150 100 0.49 150 TO-220 S10M45F 10 45 150 100 0.49 150 ITO-220 S10M60C 10 60 150 100 0.57 150 TO-220 S10M60F 10 60 150 100 0.57 150 ITO-220 S20M45C 20 45 200 150 0.52 150 TO-220 S20M45F 20 45 200 150 0.52 150 ITO-220 S20M60C 20 60 200 150 0.55 150 TO-220 S20M60F 20 60 200 150 0.55 150 ITO-220 S20M300C 20 300 180 10 0.95 150 TO-220 S30M45C 30 45 340 150 0.53 150 TO-220 S30M45F 30 45 340 150 0.53 150 ITO-220 S30M60C 30 60 320 150 0.59 150 TO-220 S30M60F 30 60 320 150 0.59 150 ITO-220 S40M45C 40 45 300 150 0.55 150 TO-220 S40M45F 40 45 300 150 0.55 150 ITO-220 S40M60C 40 60 250 200 0.60 150 TO-220 S40M60F 40 60 250 200 0.60 150 ITO-220 S40D45CL 40 45 250 150 0.52 150 TO-3P S60M45C 60 45 250 250 0.60 150 TO-220 S60M45F 60 45 250 250 0.60 150 ITO-220 S60M60C 60 60 350 300 0.65 150 TO-220 S60SM60C 60 60 350 300 0.65 150 TO-263 S60M60F 60 60 350 300 0.65 150 ITO-220 S60D45CL 60 45 300 250 0.60 150 TO-3P S40D60CL 40 60 250 200 0.6 150 TO-3P S60D60CL 60 60 350 300 0.65 150 TO-3P LOW VF Trench MOS SCHOTTKY PART NO. I0 (A) VRM (V) IFSM (A) IR[MAX] (uA) VF@Io (V) Tj max 0C PACKAGE Download SKT210 2 100 30 50 0.63 150 SMA SKT310N 3 100 30 50 0.72 150 SMA SKT310 3 100 30 50 0.58 150 SMA SRT210 2 100 50 50 0.63 150 SMB SRT510 5 100 50 50 0.69 150 SMB SRT515 5 150 50 50 0.85 150 SMB SRT520 5 200 50 50 0.90 150 SMB SRT810 8 100 50 100 0.65 150 SMB SRT2100 2 100 50 50 0.63 150 DO-15 SRT3100 3 100 75 50 0.58 150 DO-201 SRT3150 3 150 75 50 0.78 150 DO-201 SRT3200 3 200 75 50 0.85 150 DO-201 SRT5100 5 100 75 50 0.7 150 DO-201 SRT5100BM 5 100 75 50 0.6 150 DO-201AD SRT5100C 5 100 75 50 0.62 150 DO-201AD SRT5100DM 5 100 75 50 0.64 150 DO-201AD SRT5150 5 150 75 50 0.85 150 DO-201 SRT5200 5 200 75 50 0.90 150 DO-201 SRT8100 8 100 75 100 0.65 150 DO-201 S10L100 10 100 75 50 0.68 150 TO-277 S10L200 10 200 75 50 0.89 150 TO-277 S20L100 20 100 300 200 0.7 150 TO-277 S10T60C 10 60 150 50 0.6 150 TO-220AB S10T100C 10 100 150 50 0.73 150 TO-220 S10T100CB 10 100 150 50 0.62 150 TO-220 S10T150C 10 150 100 30 0.85 150 TO-220 S10T150CB 10 150 150 10 0.79 150 TO-220AB S10T200C 10 200 230 10 1.40 150 TO-220 S10T100F 10 100 150 50 0.73 150 ITO-220 S10T100FB 10 100 150 50 0.62 150 ITO-220 S10T150F 10 150 100 30 0.85 150 ITO-220 S10T200F 10 200 230 10 1.40 150 ITO-220 S20T45C 20 45 150 50 0.55 150 TO-220AB S20T60C 20 60 150 50 0.6 150 TO-220AB S20T80C 20 80 150 150 0.64 150 TO-220 S20T80F 20 80 150 150 0.64 150 ITO-220 S20T100CN 20 100 150 50 0.80 150 TO-220 S20T100C 20 100 235 50 0.72 150 TO-220 S20T100F 20 100 235 50 0.72 150 ITO-220 S20T100FB 20 100 315 50 0.67 150 ITO-220 S20T100FN 20 100 150 50 0.8 150 ITO-220AB S20T120C 20 120 200 20 0.84 150 TO-220 S20T120F 20 120 200 20 0.84 150 ITO-220 S20T150C 20 150 200 10 0.85 150 TO-220 S20T150F 20 150 200 10 0.85 150 ITO-220 S20T200C 20 200 230 10 0.95 150 ITO-220 S20T200F 20 200 230 10 0.95 150 ITO-220 S20DT100CT 20 100 200 50 0.72 150 TO-252 S20T150FB 20 150 250 10 0.82 150 ITO-220 S30T60C 30 60 240 150 0.6 150 TO-220AB S30T80C 30 80 200 150 0.65 150 TO-220 S30T80F 30 80 200 150 0.65 150 ITO-220 S30T100C 30 100 320 50 0.73 150 TO-220 S30T100CB 30 100 300 50 0.69 150 TO-220AB S30T120C 30 120 270 50 0.87 150 TO-220 S30T120F 30 120 270 50 0.87 150 ITO-220 S30T100F 30 100 320 50 0.73 150 ITO-220 S30T150C 30 150 270 50 0.85 150 TO-220 S30T200C 30 200 250 50 0.93 150 TO-220 S30T200CB 30 200 250 50 0.85 150 TO-220AB S30T150F 30 150 270 50 0.85 150 ITO-220 S30T200F 30 200 250 50 0.93 150 ITO-220 S30T100P 30 100 320 50 0.73 150 TO-3P S30T200P 30 200 250 50 0.85 150 TO-3P S40T100C 40 100 300 50 0.72 150 TO-220 S40T100F 40 100 300 50 0.72 150 ITO-220 S40T100P 40 100 300 50 0.72 150 TO-3p S40T60C 40 60 250 200 0.6 150 TO-220AB S40T80C 40 80 250 100 0.69 150 TO-220AB S40T100FN 40 100 250 45 0.75 150 ITO-220AB S40T150C 40 150 250 50 0.9 150 TO-220AB


1. Storage Temperature :-65⁰C.....+175⁰C
2. Suffix "R" : Reverse Polarity
3. Suffix "C" : Common Cathode
4. Suffix "A" : Common Anode
5. Suffix "D" : Double
